Pneumatic Internal Line-up Clamp

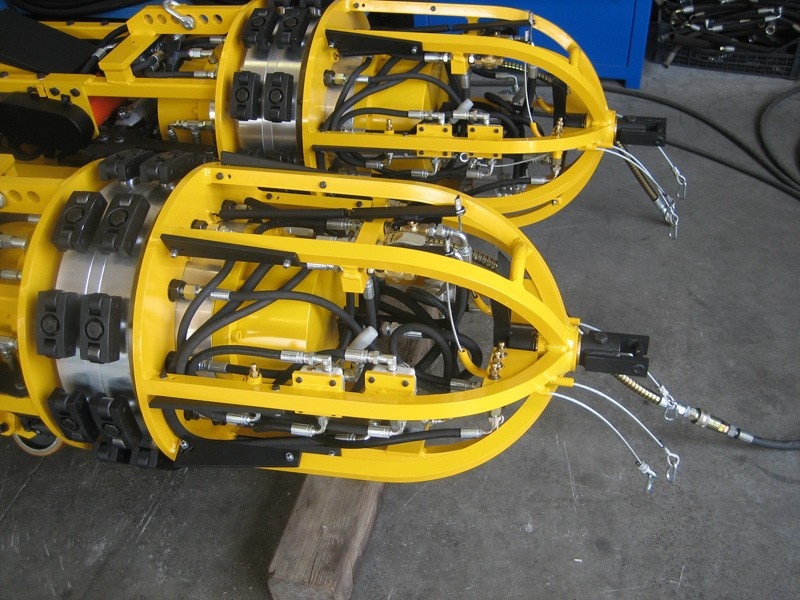

A) Pneumatic Internal Lineup Clamp (Self Propelled)
Pneumatic Internal Line Up Clamp is suitable for use in welding a wide range of pipe diameters from 16″ – 60″ (406.4 mm – 1524 mm) steel pipe and feature a powered forward and reverse. Features: Forward / reverse travel motor. Air reservoir tank. Two double acting air cylinders to propel clamp a double joint distance. Independent front- and rear-line up heads. 40 feet of reach rod and control ends. Operation and maintenance manuals. Options: Conversion kit available to quickly adjust clamp for different size pipe.
B) Pneumatic Internal Lineup Clamp (Non-Self/ manual pulled)
The non-powered Pneumatic Internal Line Up Clamp is a pull type suitable for use in welding small diameter steel pipe from 6″ – 14″ (18.3mm – 355.6 mm). Features: Air reservoir tank. Two double acting cylinders. Independent front and rear line up heads. 40 feet of reach rod and control ends. Operation and maintenance manuals.
C) Hydraulic Manual Internal Line Up Clamp
Has all the advantages of the manual clamp, plus hydraulic power. Easy to operate. Toggle action puts maximum power on pipe. Gap is unobstructed for full stringer bead. Each clamp machined for specific wall thickness. Heavy duty all steel construction. Available with copper back-up. Requires no outside power unit. Precision manufactured and field proven. Available through 64″. Comes standard with hook, crank handle, and 49 ft. (14.93 M) of reach rod.
